Atwood machine with tension, weight and acceleration

An example figure from the Pulley Generator.

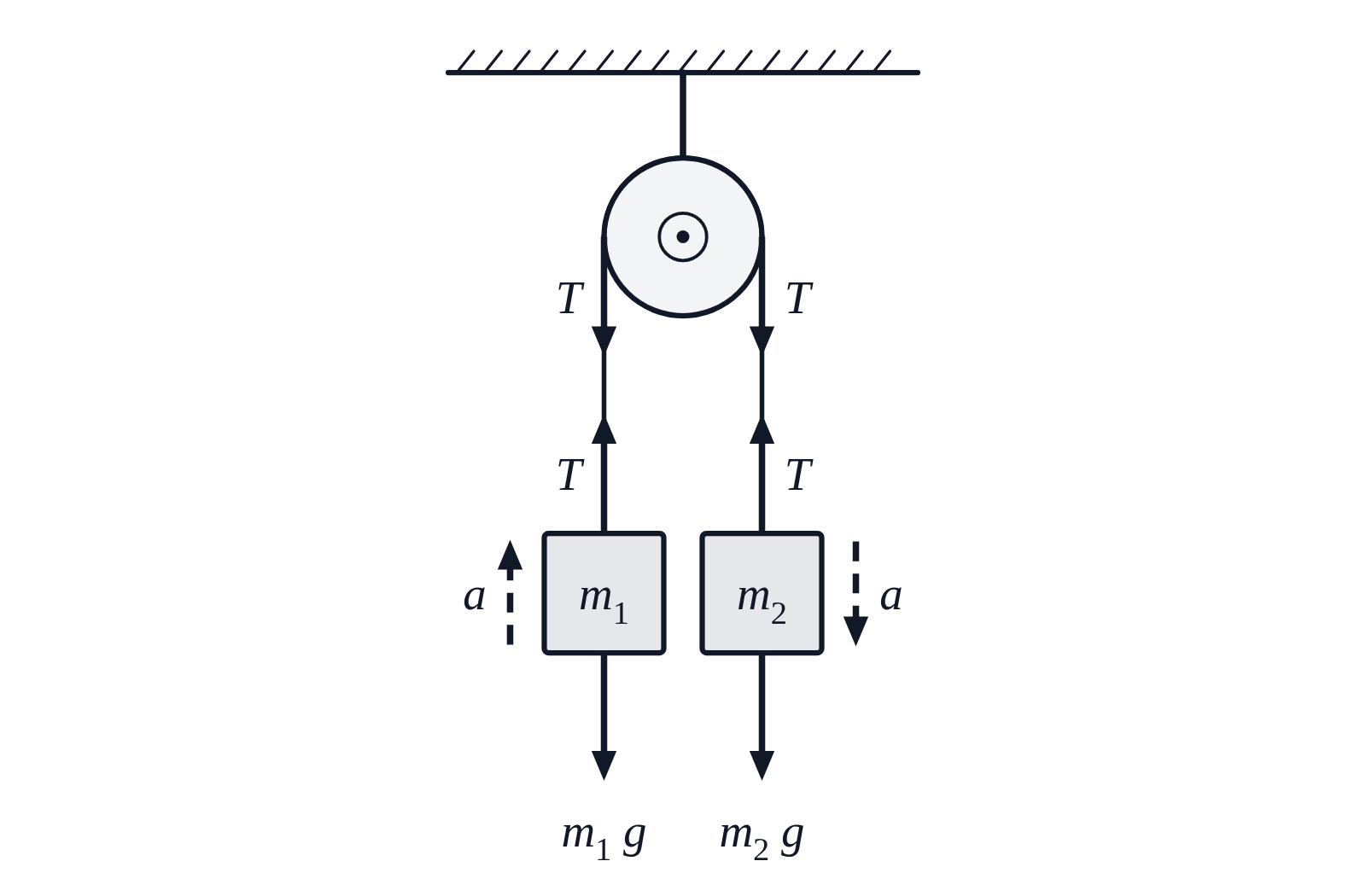

An Atwood machine: masses m_1 and m_2 hanging over one fixed pulley, with tension T up each side of the string, weights m_1 g and m_2 g down, and dashed acceleration arrows a, up on the left and down on the right
Two blocks, m_1 on the left and m_2 on the right, hang from one string over a fixed pulley hung from the ceiling. Tension T is drawn on each side of the string, pulling up on each block and down on the pulley, and the weights m_1 g and m_2 g point down from the blocks. Dashed acceleration arrows a point up beside m_1 and down beside m_2.

Editing opens it in the Pulley Generator with these settings, to change anything and copy or download your own.

Free to use in your tests, worksheets, slides or anything else. Open source under Apache 2.0. How to reuse our figures
